Replacing a FINE Cartridge

When remaining ink cautions or errors occur, the error message will appear on the LCD to inform you of the error. In this state, the printer cannot print or scan. Check the error message and take appropriate action.

Replacing Procedure

When you need to replace a FINE cartridge, follow the procedure below.

Watch the movie

Important

  • Do not touch the electrical contacts (A) or print head nozzle (B) on a FINE cartridge. The printer may not print properly if you touch them.

  • If you remove a FINE cartridge, replace it immediately. Do not leave the printer with the FINE cartridge removed.

  • Use a new FINE cartridge for replacement. Installing a used FINE cartridge may cause the nozzles to clog.

    Furthermore, with such a FINE cartridge, the printer will not be able to inform you when to replace the FINE cartridge properly.

Note

  • For Windows, if a FINE cartridge runs out of ink, you can print with either color or black FINE cartridge, in whichever ink remains, only for a while.

    For information on how to configure this setting, see below.

  • Color ink may be consumed even when printing a black-and-white document or when black-and-white printing is specified.

    Both color ink and black ink are also consumed in the standard cleaning and deep cleaning of the print head, which may be necessary to maintain the performance of the printer. When ink runs out, replace the FINE cartridge immediately with a new one.

  1. Check that printer is turned on.

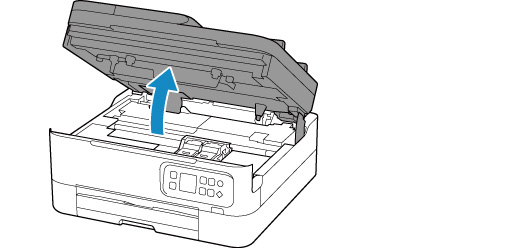

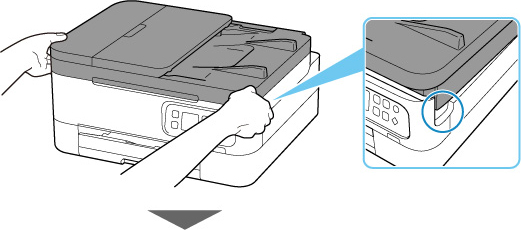

  2. Open the scanning unit / cover.

    The FINE cartridge holder moves to the replacement position.

    Caution

    • Do not hold the FINE cartridge holder to stop or move it forcibly. Do not touch the FINE cartridge holder until it stops completely.

    Important

    • Do not touch the metallic parts or other parts inside the printer.

  3. Remove the empty FINE cartridge.

    1. Pick up the ink cartridge locking cover to open it.

    2. Remove the FINE cartridge.

  4. Prepare a new FINE cartridge.

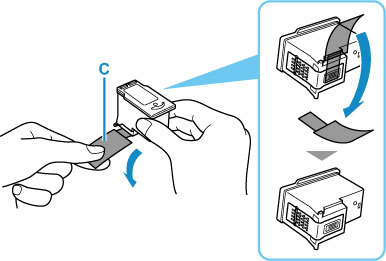

    1. Take new FINE cartridge out of its package and remove protective tape (C) gently.

    Important

    • Do not touch the electrical contacts or print head nozzle on a FINE cartridge. The printer may not print properly if you touch them.

  5. Install the FINE cartridge.

    1. Insert the new FINE cartridge into the FINE cartridge holder.

      The color FINE cartridge should be installed into the left slot and the black FINE cartridge should be installed into the right slot.

    2. Close the ink cartridge locking cover to secure theFINE cartridge.

      Push the ink cartridge locking cover fully until a "click" sound is heard.

  6. Close the scanning unit / cover.

    To close the scanning unit / cover, hold it up once, then take it down gently.

    Caution

    • When closing the scanning unit / cover, be careful not to get your fingers caught.

    Note

    • If the error message appears on the LCD after the scanning unit / cover is closed, take appropriate action.

    • If the print head is out of alignment, as indicated by misaligned printed ruled lines or similar symptoms, align the print head.
